 UN Business  Soft Skin Tent |
Soft Skin Tent |
|
|
|
| Accommodation Tent |
| A portable shelter, as of canvas, stretched over a supporting framework of poles with ropes and pegs |
|
| Fast & Easy Erection and Relocation |
• Dimension : 4.8m (W) x 7.2m (L) x 3.6m (H)
• 100% prefabricated, No heavy equipment or skilled technician needed

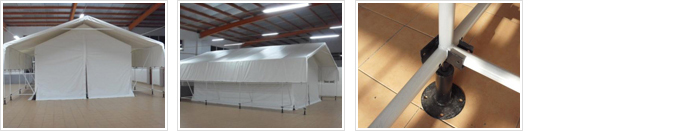

• Ground Adjustable Flooring System (patented) enables elevation up to 250mm from ground-Adjustable on uneven ground
(ex. mud, soft ground, etc.)
• Lightweight and easy to transport via air, land, and sea
• Packable and Transportable in ISO 20’ and 40’ Containers
(loaded 8 tents with flooring system, 12 tents without flooring system in one container based on 20’ container)
• Easy & fast assembly and disassembly with semi-automatic pipe connectors
- 30% more rapid compared to ordinary pipes
- Assembly requires 4 men and less than 1 hour |
 |
| Multiple Occupancy |
Two(2) Single Occupancy |
|
|
| First-class Safe Features |
• Inner door & windows installed with mosquito-proof net (PVC dipped polyester mesh), Velcro tape, zipper
- Open and closes with zipper, Velcro tape, and affixed by fastener
• Installed with quality waterproof plywood flooring for watertightness
• Installed with battery operated smoke detectors (A1 Type: 3, A2 Type: 2)
• ISO 9001:2000 (Quality management system) |
 |
|
| Strong Features |
• Basic wind load : 40km/h, 80km/h (optional)
• Fabric :PVDF (Polyvinylidene Fluoride) top coating has self-cleaning function, excellent wear and tear resistant,
withstands UV degradation, algae, fungal & atmospheric chemic attack
• External temperature resistant :-25℃ ~ 70℃ (applicable for a variety of worldwide climates)
• Special corrosion protection of steel components :
sandblasted → hot dipped galvanized with zinc coating weight of 610g/㎡ → powder coating |
|
| Sustainable Features |
• Energy efficient : 150mm gap between the tent and fly sheet allows natural air flow and maintains inner temperature
(approximately 10% more efficient than other tents)
• Lifespan : 15years (durable PVDF fabric & frame)
• ISO14001:2004 (Environmental Management System)
• UNPKO (United Nations Peacekeeping Operations) has been using our medium-sized accommodation tent since 2003 under contracts
UNPD / C0012 / 03 and UNPD / C0277 / 08.
• Optional
- Full range of electrical fixtures, Ground-adjustable rigid floor system, Steel door,Outer-framed fly system.
- Tent size can be extended by 2.4m in length
• Applicable for accommodation, workshop, storage, gym, office, warehouse and etc. |
|
| |
|
|
