Prefabricated Building System (Packable) is the most innovative building system for field missions. Prefabricated building system is
designed to maximize
the function of
transportation, storage and relocationThe building has been accurately designed and manufactured
for easy
handling and transportation in
ISO containersContract No. PD/C0277/08 (RFPG-403, Various Structures For Accommodation,
Storage, and Workshop)

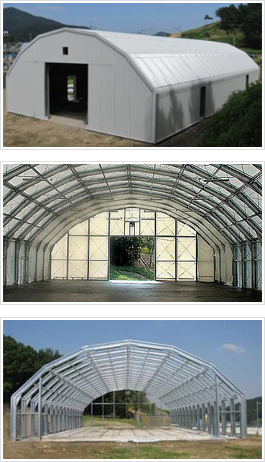

CaravanES’s prefabricated building system has diverse usages as a form of accommodation, warehouse, sports center, greenhouse, farmhouse, etc. This prefabricated building system has been precisely designed for portability and functionality with easy installation and reparation. This heavy duty, light-weight prefabricated building system employs various patents and is offered various sizes to accurately meet the needs of the client.
|
| |
| 1. Packable |
 |
| Prefabricated building system is packable, re-locatable and transportable building system |
• The fastest erection & demounting time with bolting system.
• The size and weight of parts have been precisely designed,
which enables easy manual installation |

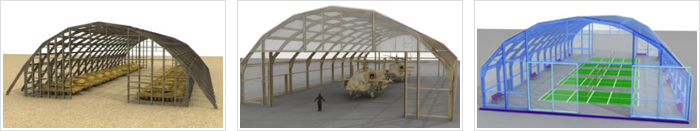

| |
| 2. Structural Frame Made of High Strengthen Steel Frame |
• Prefabricated building system is the strongest frame system but light weight.
• Various patented technologies based on latest structural engineering and theory
(Wind load capacity: up to 240km/h)
• Prefabricated Steel H-Beam (PH-Beam) provides manual erection without heavy equipment
• PH-Beam structure is simpler and stronger than pipe-truss type
• Arch-shaped roof provides better structural strength than Gable-shaped roof |
| |
|
| 3. Eco-design |
 |
• Re-locatable and reusable building
• Structural efficiency with Arch Shaped, patented
• Double-wall system -Perfect insulation by air, patented (Eco-friendly insulation system) |
| |
| 4. Various Sizes |
• Structure size: 6x 9m for Accommodation to 90 x 150m Warehouse and Sports center
• Door size: 0.9x2.1m (Pedestrian ) to 15x30m (Special purpose) |
|
| |
| 5. Engineered Composite Plastic (FRP) |
• Opened a new era of FRP frame for structure building
• FRP (Fiberglass Reinforced Plastic) H-Beam is developed for the customer’s special needs
• Light weight FRP (Specific gravity: 2.4) is easy to handle but as strong as steel frame
• Naturally rust-free : ideal for the Marine industry |
| |
| 6. Various Outer Claddings |
FRP and Steel PH-Beam Structures are designed as s switchable system which enables both hardwall and softwall outer claddings
FRP, steel and transparent PC *** claddings are available (Ideal for transparent double-wall) |
(1) Steel sheeting
• PH-Beam Structures are designed for various kinds of steel sheeting
• Steel sheeting with foamed plastic for better insulation
• Galvalume™ sheet has excellent durability
|
 |
(2) Canvas sheeting -TFS (Tensioned-Fabric Structure)
• TFS system is the best way for the softwall (fabric and membrane) structures
• Various kinds of fabric and membrane including transparent fabric can be provided
• Fabric is mechanically stretched, so it is much tighter and stronger than manual
stretching method
• Easy to repair |
(3) Transparent cladding
• Transparent PC claddings provides better outer beauty |
| |
| 7. Diverse Usages |
• Hangar
• Accommodation
• Warehouse
• Workshop
• Sports center
• Shipyard
• Greenhouse
• Cattle barn |
| |
|
| 8. Basic Dimensions |
| PBS-0612 |
PBS-1224 |
PBS-1836 |
 |
 |
 |
| 6 x 12 x 3m(Widthx Length x Center Height) |
12 x 24x 5.4m |
18 x 36 x 8.1m |
| PBS-3060 |
PBS-4590 |
PBS-90150 |
 |
 |
 |
| 30 x 60 x 12m |
45 x 90 x 15m |
90 x 150x 18m |
|
| |
| 9. Optional Items |
(1) Security System
• Steel cladding and high strength reinforced steel frame provides perfect security
• Rust-free outer sheeting
(2) Camouflage Pattern
• Camouflage pattern available and dull finished FRP cladding is an alternative forcamouflage
(3) Bullet-Proof
(4) Infrared Ray and Ultra-Violet Ray Protection Function are Available |
 |
| |
| 10. Optional Installation |
(1) Electrical Materials
• Whole electrical package for base camp and village construction
• International standard cables, distribution boards, transformers, lamps, emergency light tower and etc.
|
- International standard cables from 1.5㎟ to the armored one (with accessories)
- Various design for customer’s need
- Transformers are suitable for harsh environment (-20 ºC to 50 ºC)
- Full range of lamps for camp and village
- 6KW emergency light tower including noise suppression diesel generator
|
| • Prime Contractor to the United Nations (Contract No. PD/C0018/08, Electrical Materials) |
 |
|
(2) Sanitation Fixtures
• Made of durable materials (100% stainless steel)
• Water free urinals available: water efficient
• Environmentally friendly
• Specially designed for field usage, transportation and storage

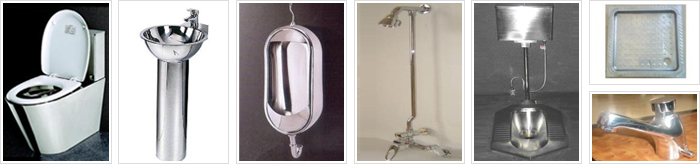

• Dual-flush toilet, wall-hung urinal, wash basin, janitor’s room, hot & cold faucet, shower tray, tissue dispensers and etc.
• Prime Contractor to the United Nations (Contract No. PD/C0101/07, Ablution & Sanitation Fixture)
